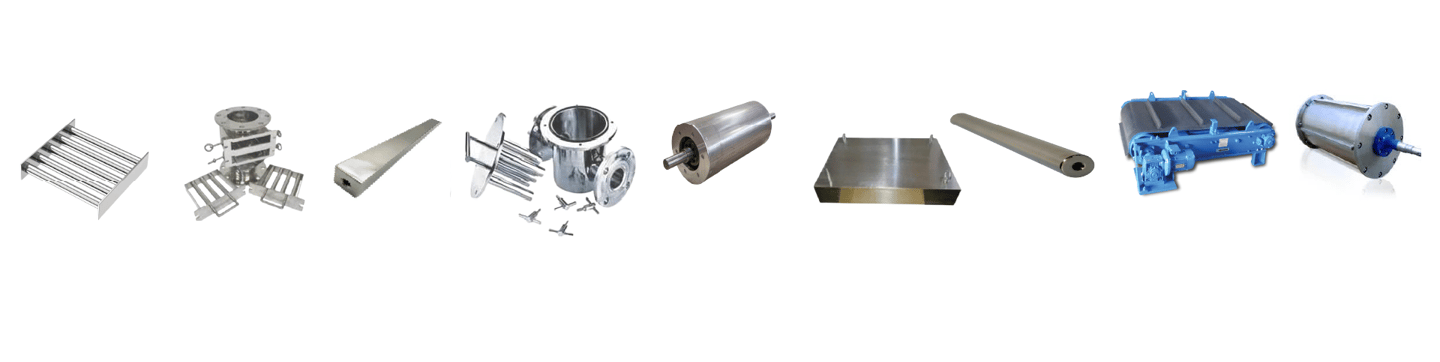

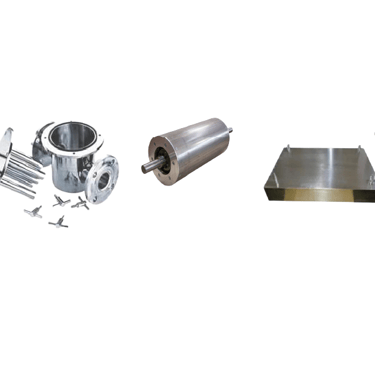

Industrial Magnetic Separators & Equipment

Filtration Magnets (Grates & Rods)

These essential tools are designed to remove fine ferrous metal contamination from dry, free-flowing products like powders, granules, and pellets. Placed directly into chutes, hoppers, or pipelines, they utilize powerful magnetic fields to capture metal before it enters final processing.

Key Products & Function:

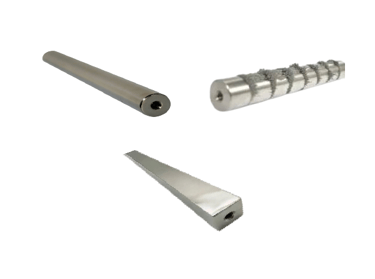

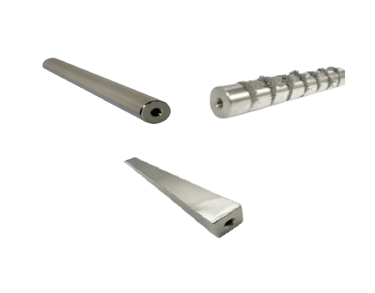

Magnetic Rods (Filter Bars):

These are the core component of grill and liquid trap magnets. They are individual, high-strength tubes that can be customized in length and material grade (e.g., high-temperature ferrite or ultra-strong Neodymium) to suit specific filtration needs in both dry and wet applications.

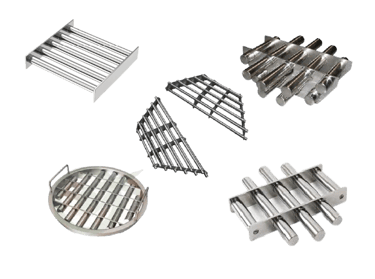

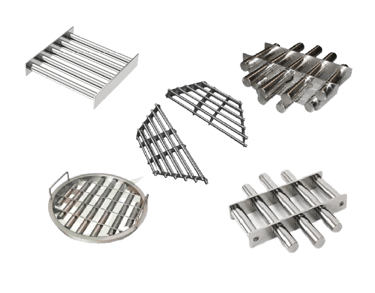

Grill Magnets (Grate Magnets):

These consist of a precise grid of powerful magnetic rods, typically encased in stainless steel. Installed in hoppers, silos, or chutes, they force the material to cascade over the magnetized tubes, ensuring maximum contact and capturing even the smallest ferrous fines (dust, chips, and microscopic particles) from the product stream.

Key Applications:

Plastics, Food Ingredients, Grains, Sugar, Chemicals.

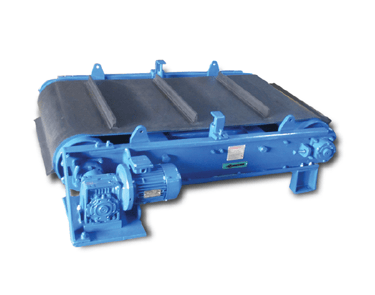

Conveyor & Belt Magnets

For handling bulk materials and removing larger pieces of tramp iron, our conveyor magnets are crucial for protecting crushers, grinders, and other downstream equipment.

Key Products & Function:

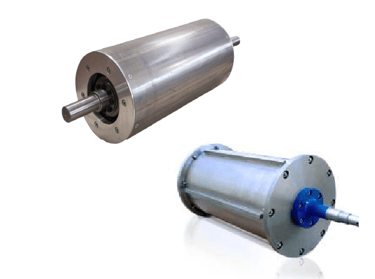

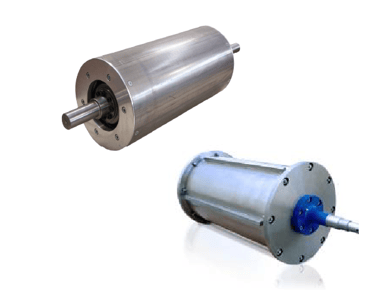

Drum Magnets:

Used as the head pulley at the discharge point of a conveyor belt. The non-magnetic material falls freely, while the stationary internal magnet holds ferrous contamination to the rotating drum shell until it passes out of the magnetic field, separating it into a different discharge chute. This provides a continuous, self-cleaning separation process.

Plate Magnets:

These versatile units are mounted underneath thin layers of material on conveyors, or over the face of chutes. They utilize a strong magnetic field projected through a steel faceplate to lift and hold ferrous metal particles. They require manual cleaning unless fitted with a self-cleaning mechanism.

Key Applications:

Recycling, Mining, Aggregates, Cement, Bulk Material Handling.

Suspended Magnets (Over-Belt Separators)

Suspended magnets are heavy-duty, non-electric solutions designed to hang above conveyor belts. They extract large, damaging pieces of metal (tramp iron) from thick, deep burdens of material, preventing severe damage to crushers and shredders.

Key Products & Function:

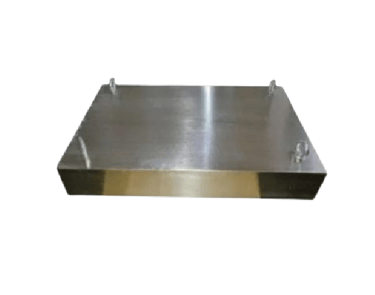

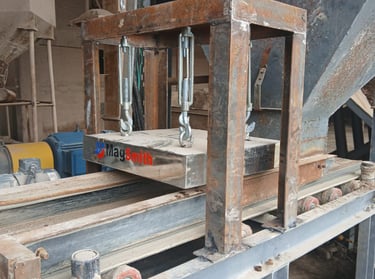

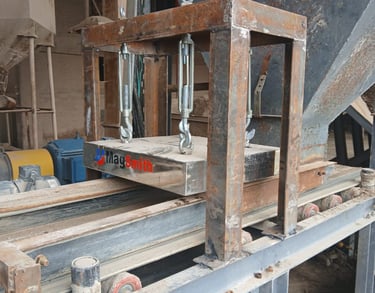

Suspended Plate Magnets:

These large, powerful permanent magnets are cased in a heavy-duty housing and suspended at a set distance above the conveyor belt. They are a cost-effective choice requiring minimal maintenance.

Key Applications:

Coal, Mining, Recycling (Tire, Wood), Waste Management, Quarries.

Need Expert Advice?

We can custom-engineer a magnetic separator to perfectly fit your material flow rate and line dimensions. Request a Technical Consultation
